At what voltage or field does insulation fail?
AC breakdown
Performance Testing · Electrical & Electrochemical
Electrical Breakdown Voltage Testing
Determine breakdown voltage and dielectric strength under a defined voltage ramp, electrode geometry and environment.
- Price
- from£165 per sample, excl. VAT
- Turnaround
- 5 working days Preparation and scope dependent
- Available platforms

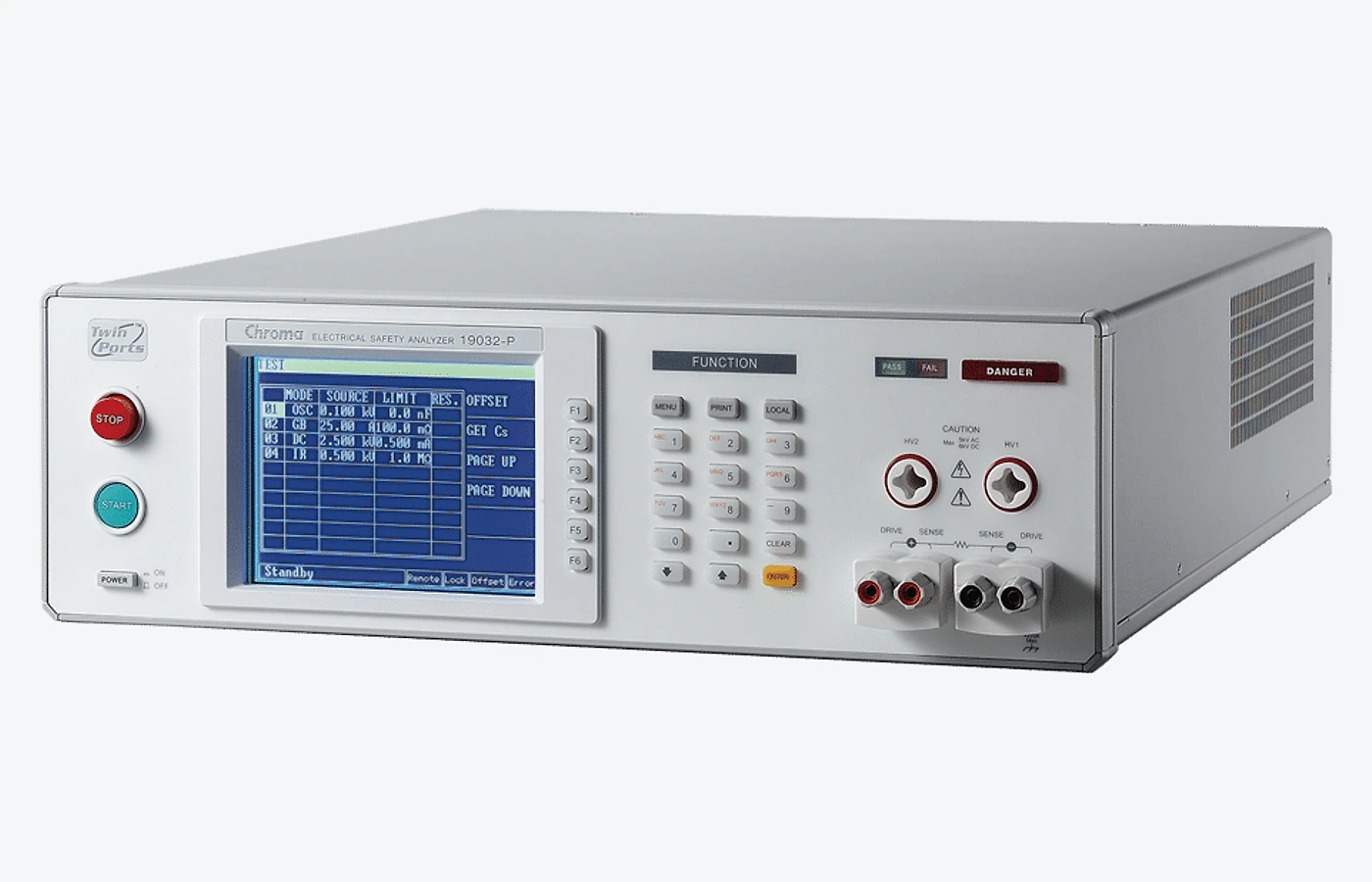

- Chroma 19032
- Typical outputs
- Breakdown voltageCalculated dielectric strengthRepeat statisticsRamp, electrode and environmental conditions
Why this service
What Electrical Breakdown Voltage Testing can help you understand
Breakdown testing increases electrical stress until insulation failure or a specified limit is reached. Repeat measurements are needed because defects, thickness, electrode geometry and environment can…
Does a material meet a dielectric-strength requirement?
DC breakdown
How do thickness, conditioning or environment change breakdown…
Comparative dielectric strength
Choose the scope
Start from the question, not the tool
The method, preparation route and reporting depth depend on what you need to decide.
AC breakdown
At what voltage or field does insulation fail?
- Best used when
- At what voltage or field does insulation fail?
- Typical result
- Breakdown voltage
- Preparation note
- Declare biological hazards and confirm fixation, dehydration, temperature and disposal requirements.
DC breakdown
Does a material meet a dielectric-strength requirement?
- Best used when
- Does a material meet a dielectric-strength requirement?
- Typical result
- Calculated dielectric strength
- Preparation note
- Confirm the applicable standard, dimensions, loading direction and number of replicates.
Comparative dielectric strength
How do thickness, conditioning or environment change breakdown behaviour?
- Best used when
- How do thickness, conditioning or environment change breakdown behaviour?
- Typical result
- Repeat statistics
- Preparation note
- Confirm power, connections, operating state, access restrictions and permitted disassembly.
Common outputs
A result package matched to the decision you need to make
Fields, conditions, processing and file formats are confirmed before work begins.
Breakdown voltage reported with the agreed units, sample reference and measurement conditions.
Calculated dielectric strength supplied in a labelled format suitable for direct sample or condition comparison.
Repeat statistics provided with the processing basis and quality checks agreed during technical review.
Ramp, electrode and environmental conditions included when selected in the confirmed reporting scope.
Sample requirements
What to provide before work begins
Provide representative, clearly labelled samples and identify the decision, feature or comparison that matters.
| Suitable sample | Submission requirement | Planning note |
|---|---|---|
| Biological / soft material | Provide fixed, preserved or otherwise stabilised material in the agreed container and medium. | Declare biological hazards and confirm fixation, dehydration, temperature and disposal requirements. |
| Test coupon / specimen | Provide labelled specimens prepared to the agreed geometry, orientation and surface condition. | Confirm the applicable standard, dimensions, loading direction and number of replicates. |
| Device / assembly | Provide a complete labelled device or assembly with drawings, interfaces and operating limits. | Confirm power, connections, operating state, access restrictions and permitted disassembly. |
Objective: state the decision, comparison or acceptance criterion the work must support.
Handling and access: declare hazards, instability, confidentiality, file constraints or special logistics before dispatch or transfer.
Questions and answers
Common planning decisions
Short answers to issues that can change preparation, scope, timing or interpretation.
How many repeats are recommended?
The method and variability determine the count; three repeats are a minimum screening route, while formal statistics usually require more.
What is the typical turnaround?
Typical turnaround is 5 working days after sample acceptance and method confirmation.
Configure the service
Send the information needed to scope Electrical Breakdown Voltage Testing correctly
- Sample form, material, dimensions and quantity
- Feature or decision the result must address
- Required comparison, acceptance criterion or reference
- Preferred output and reporting depth
