Correlative SEM-Raman Analysis

Characterise morphology and microstructure, molecular or crystalline Raman identity, and elemental or molecular-ion distribution across the same feature using a scope agreed around your sample and decision.

  • Morphology and microstructure
  • Molecular or crystalline Raman identity
  • Elemental or molecular-ion distribution…
  • SEM-Raman
Configure & Book Check Sample Requirements

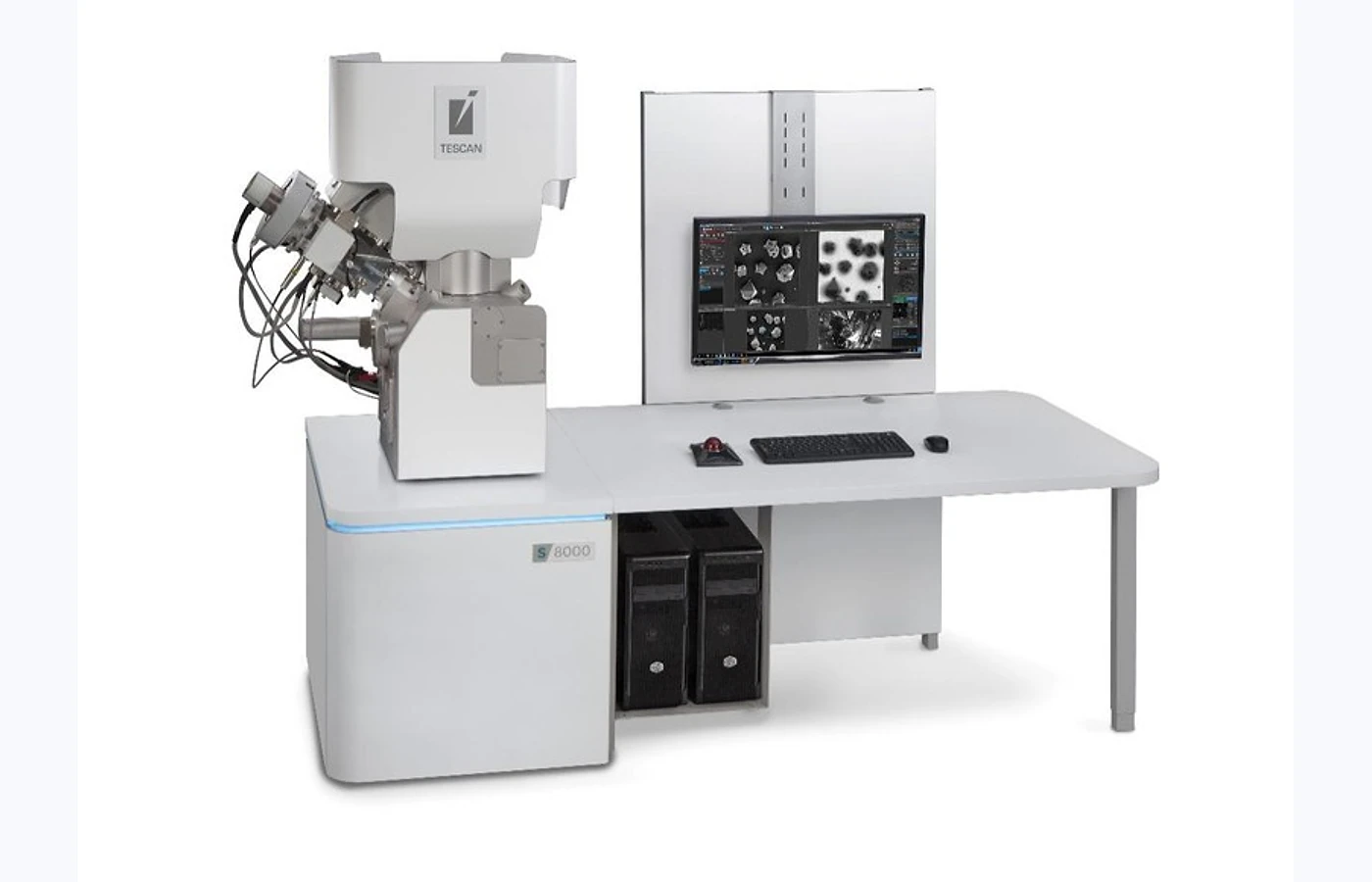

Representative Correlative SEM-Raman Analysis equipment selected for the TESTDOG service catalogue
Price
from£240
per sample, excl. VAT
Turnaround
7 working days
Preparation and scope dependent
Available platforms
WITec RISE alpha300 apyronHORIBA LabRAM OdysseyRenishaw inVia Qontor
Typical outputs
Registered SEM and Raman mapsCorrelative overlaysOptional FIB cross-section and TOF-SIMS ion mapsMethod-specific images

Why this test

What SEM-Raman can help you understand

Correlative SEM-Raman Analysis is selected when the project needs defensible information on morphology and microstructure, molecular or crystalline Raman identity, or elemental or molecular-ion distribution across the…

01

Morphology and microstructure

SEM-Raman

02

Molecular or crystalline Raman identity

SEM-Raman plus FIB cross-section

03

Elemental or molecular-ion distribution across the same feature

full SEM-Raman-FIB-TOF-SIMS workflow

Choose the scope

Start from the question, not the instrument

The measurement mode, preparation route and reporting depth depend on what you need to learn from the sample.

SEM-Raman

morphology and microstructure

Best used when
morphology and microstructure
Typical result
Registered SEM and Raman maps
Preparation note
Exact mass and any drying or dispersion step are confirmed after technical review.

Common outputs

A result package matched to the decision you need to make

Fields, measurement conditions, processing and file formats are confirmed before work begins.

StandardRegistered SEM and Raman maps

Registered SEM and Raman maps reported with the agreed units, sample reference and measurement conditions.

StandardCorrelative overlays

Correlative overlays supplied in a labelled format suitable for direct sample or condition comparison.

OptionalOptional FIB cross-section and TOF-SIMS ion maps

Optional FIB cross-section and TOF-SIMS ion maps provided with the processing basis and quality checks agreed during technical review.

OptionalMethod-specific images

Method-specific images included when selected in the confirmed reporting scope.

Example results

What SEM-Raman results can look like

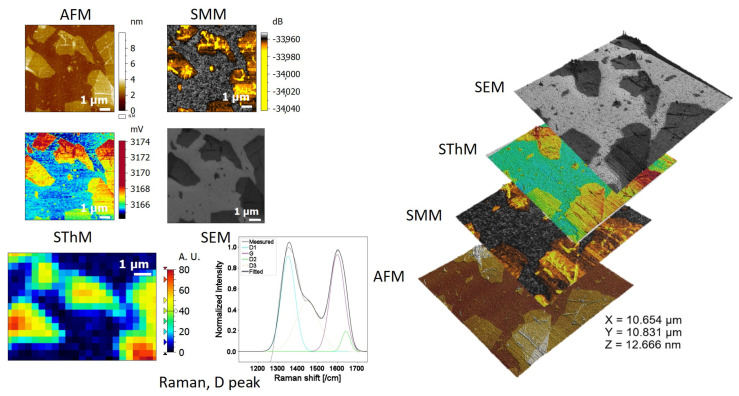

Correlative SEM-Raman result: The image shows realization of a correlative approach on reduced graphene oxide
Elemental distribution map

The image shows realization of a correlative approach on reduced graphene oxide.

Research source · source · CC BY

Sample requirements

What to send

Provide representative, clearly labelled samples and identify the region, feature or comparison that matters.

Suitable sample or inputSubmission requirementPlanning note
Powder / particlesProvide a dry, homogeneous and clearly labelled sample in a sealed container.Exact mass and any drying or dispersion step are confirmed after technical review.
Film / coatingProvide the coated substrate or a flat film with the test surface and coating side clearly marked.State the substrate, nominal thickness and whether sectioning or mounting is permitted.
Test coupon / specimenProvide labelled specimens prepared to the agreed geometry, orientation and surface condition.Confirm the applicable standard, dimensions, loading direction and number of replicates.
Device / assemblyProvide a complete labelled device or assembly with drawings, interfaces and operating limits.Confirm power, connections, operating state, access restrictions and permitted disassembly.

Region of interest: include a marked image, sketch or reference when the target feature is localised.

Handling: declare hazardous, magnetic, volatile, moisture-sensitive, beam-sensitive or temperature-controlled material before dispatch.

Questions and answers

Common planning decisions

Short answers to issues that can change preparation, scope or interpretation.

What should I send for Correlative SEM-Raman Analysis?

Provide powder / particles, film / coating, test coupon / specimen, device / assembly as applicable. Exact quantity, dimensions and preparation are confirmed during technical review.

Which analysis option should I choose?

Choose the mode around the decision you need to make. For morphology and microstructure, start with SEM-Raman; add SEM-Raman plus FIB cross-section when comparison or quantification is required.

How long will the test take?

Typical turnaround is 7 working days after sample acceptance and method confirmation.

What can limit the result?

Registration accuracy and different sampling depths must be considered. The complete workflow is slower and more destructive than a single technique.

Configure the service

Send the information needed to scope SEM-Raman correctly

  • Sample form, material, dimensions and quantity
  • Feature or decision the result must address
  • Marked region of interest where relevant
  • Required comparison, output and reporting depth
SEM-Raman analysisfrom£240

Typical turnaround: 7 working days

Configure & Book
